TM080TDGP01 TIANMA 8.0" 1024(RGB)×768 580 cd/m² INDUSTRIAL LCD DISPLAY

Name: TM080TDGP01 TIANMA 80quot 1024RGB768 580 cdm INDUSTRIAL LCD DISPLAY
Brand: TIANMA
Price: 1 USD

China TM080TDGP01 TIANMA 8.0" 1024(RGB)×768 580 cd/m² INDUSTRIAL LCD DISPLAY wholesale

Brand Name : TIANMA

Model Number : TM080TDGP01

Certification : ISO9001

Place of Origin : JAPAN

Supply Ability : 3000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MOQ : 1PCS

MODEL NUMBER : TM080TDGP01

BRAND : TIANMA

SIZE : 8.0INCH

RESOLUTION : 1024(RGB)×768 [XGA] 160PPI

BRIGHTNESS : 580 cd/m² (Typ.)

Viewing Angle : 85/85/85/85 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

TIANMA TM080TDGP01 Application Details

Basic Information :	Brand		Model	TM080TDGP01
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	8.0"	Alias	-
Environment :	Storage Temp.	-30 ~~ 80 °C	Operating Temp.	-20 ~~ 70 °C
Environment :	RoHS		Vibration	-
Typical Features :

TIANMA TM080TDGP01 Mechanical Details

Pixel Features :	Resolution	1024(RGB)×768, XGA	Dot Pitch(mm)	0.05275×0.15825 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.15825×0.15825 (H×V) [160PPI]
Mechanical Size :	Active Area(mm)	162.048(H) × 121.536(V)	Bezel Area(mm)	164.65(H) × 122.54(V)
Mechanical Size :	Outline Dim.(mm)	183.43(H) × 138.35(V)	Depth(mm)	3.75±0.3
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3 (H:V)	Orientation	Landscape type
Mounting :	Without
Other Spec :	Weight	TBD	Treatment	Hard coating

TIANMA TM080TDGP01 Optical Details

Basic Information :	Luminance(cd/m²)	580 (Typ.)	Contrast Ratio	1200:1 (Typ.) (Transmissive)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Display Mode	SFT, Normally Black, Transmissive
	Best View on	Symmetry	Response(ms)	35 (Typ.)(Tr+Td)
Color Performance :	White Coordinate	X:0.310; Y:0.329	Display Colors	16.7M (8-bit)
Color Performance :	Color Temperature	6647K	White Uniformity	1.18/1.25 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	52%	sRGB	71% coverage
	Adobe RGB	54% coverage	DCI-P3	54% coverage
	Rec.2020	39% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM080TDGP01 Electronics Details

Frame Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Driver IC :	COG Suggest RM51150+HX8684B

TIANMA TM080TDGP01 Interface Details

Signal Electrical :	Voltage Supply	3.3/12.6/23/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)		Current Supply	TBD
Signal Type :	LVDS (1 ch, 8-bit)			Signal Voltage	-
Interface Features :	Position	-		Type	FPC
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :			1 pcs	40 pins	0.5 mm

TIANMA TM080TDGP01 Backlight Details

Backlight Features:	Shape	Array	Type	WLED	Position	Edge light type
Backlight Features:	Replacement	-	Quantity	3S9P	Life Time	30K(Typ.) (Hours)
Lamp Electrical :	Voltage Supply	9.3±0.9V		Current Supply	180/225mA (Typ./Max.)
Lamp Electrical :	Consumption	1.67/2.3W (Typ./Max.)
Interface Features :	Position	-		Type	Included in panel signal interface
Backlight Driver :	No

TIANMA TM080TDGP01 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	48 pcs / box	TBD	544×365×250 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TM080TDGP01 TIANMA 8.0" 1024(RGB)×768 580 cd/m² INDUSTRIAL LCD DISPLAY

Product Tags:

QVGA TIANMA LCD Panel

SVGA TIANMA LCD Panel

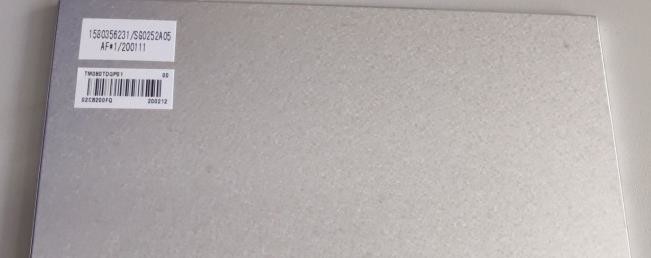

TM080TDGP01 TIANMA 8.0" 1024(RGB)×768 580 cd/m² INDUSTRIAL LCD DISPLAY Images
