TM034XVZP01 TIANMA 3.4 inch 800×800 350 cd/m² INDUSTRIAL LCD DISPLAY

Name: TM034XVZP01 TIANMA 34 inch 800800 350 cdm INDUSTRIAL LCD DISPLAY
Brand: TIANMA
Price: 1 USD

China TM034XVZP01 TIANMA 3.4 inch 800×800 350 cd/m² INDUSTRIAL LCD DISPLAY wholesale

Brand Name : TIANMA

Model Number : TM034XVZP01

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 5000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

BRAND : TIANMA

MODEL NUMBER : TM034XVZP01

SIZE : 3.5 inch

RESOLUTION : 800(RGB)×800 231PPI

BRIGHTNESS : 350 cd/m² (Typ.

Viewing Angle : 80/80/80/80 (Typ.)(CR≥10)

Lamp Type : WLED

SIGNAL LNTERFACE : LVDS

TEMPERATURE RANGE : Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

Contact Now

TIANMA TM034XVZP01 Application Details

Basic Information :

Brand

Model

TM034XVZP01

Type

a-Si TFT-LCD , LCM

Used For

Screen Size

3.4 inch

Alias

TM034XVZP01-00

Environment :

Storage Temp.

-30 ~ 80 °C

Operating Temp.

-20 ~ 70 °C

RoHS

Vibration

Typical Features :

TIANMA TM034XVZP01 Mechanical Details

Pixel Features :

Resolution

800(RGB)×800

Dot Pitch(mm)

0.0365×0.1095 (H×V)

Pixel Format

RGB Vertical Stripe

Pixel Pitch(mm)

0.1095×0.1095 (H×V) [231PPI]

Mechanical Size :

Active Area(mm)

87.6(H) × 87.6(V)

Bezel Area(mm)

88.6(H) × 88.6(V)

Outline Dim.(mm)

99(H) × 96.6(V)

Depth(mm)

3.98

Outline Features :

Form Style

Flat Circular

Shape Style

Aspect Ratio

1:1 (H:V)

Orientation

Landscape type

Touch Panel :

Touch Points

Touch Panel

PCAP

TP Controller

With touch controller

Touch Signal

SPI

Other Spec :

Weight

TBD

Treatment

Hard coating (7H)

TIANMA TM034XVZP01 Optical Details

Basic Information :

Luminance(cd/m²)

350 (Typ.)

Contrast Ratio

800:1 (Typ.) (Transmissive)

Viewing Angle

80/80/80/80 (Typ.)(CR≥10)

Display Mode

SFT, Normally Black, Transmissive

Best View on

Symmetry

Response(ms)

25 (Typ.)(Tr+Td)

Color Performance :

White Coordinate

Wx:0.313; Wy:0.329

Display Colors

16.7M (8-bit)

Color Temperature

6485K

White Uniformity

1.25/1.35 (Typ./Max.)(9 points)

TIANMA TM034XVZP01 Electronics Details

Driver IC :

COG Built-in ILI9881C

TIANMA TM034XVZP01 Interface Details

Signal Electrical :

Voltage Supply

1.8/5.0/-5.0V (Typ.)(IOVCC/VDD/-VDD)

Current Supply

Signal Type :

MIPI (3 data lanes)

Logic Voltage

Interface Features :

Position

Type

FPC

Interface Detail :

Brand

Model

Pitch

Pins

Quantity

Pin Configuration

0.3 mm

39 pins

1 pcs

TIANMA TM034XVZP01 Backlight Details

Backlight Features :

Type

WLED

Quantity

2S4P

Position

Edge light type

Replacement

Shape

Array

Life Time

30K(Typ.) Hours

Lamp Electrical :

Voltage Supply

12.8V (Typ.)

Current Supply

40mA (Typ.)

Consumption

512mW (Typ.)

Interface Features :

Position

Type

Included in panel signal interface

Backlight Driver :

TIANMA TM034XVZP01 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	96 pcs / box

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TM034XVZP01 TIANMA 3.4 inch 800×800 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Tags:

WLED Backlight Tianma TFT

WQVGA TIANMA LCD Panel

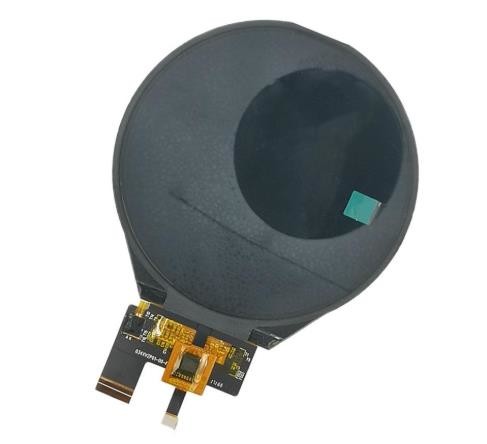

TM034XVZP01 TIANMA 3.4 inch 800×800 350 cd/m² INDUSTRIAL LCD DISPLAY Images
