Antiglare 640x480 800cd/M2 TFT LCD Panel VGA 122PPI TX17D01VM2CPB

Name: Antiglare 640x480 800cdM2 TFT LCD Panel VGA 122PPI TX17D01VM2CPB
Brand: HITIACH
Price: 1 USD

China Antiglare 640x480 800cd/M2 TFT LCD Panel VGA 122PPI TX17D01VM2CPB wholesale

Brand Name : HITIACH

Model Number : TX17D01VM2CPB

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 200PCS

Delivery Time : 2-3DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TX17D01VM2CPB

BRAND : HITACHI

SIZE : 6.5 inch

RESOLUTION : 640(RGB)×480, VGA, 122PPI

BRIGHTNESS : 800 cd/m² (Typ.)

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)

Contact Now

HITACHI TX17D01VM2CPB Summary

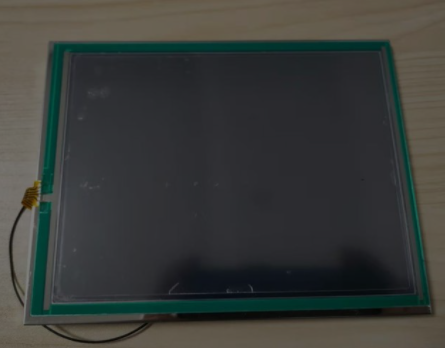

Kaohsiung Hitachi Electronics Co., Ltd. (hereafter called HITACHI) TX17D01VM2CPB is a 6.5 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , touchscreen 4-wire Resistive Touch, F/G. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).

HITACHI TX17D01VM2CPB Application Details

Basic Detail :	Manufacturer		Model Name	TX17D01VM2CPB
	Panel Type	a-Si TFT-LCD , LCM	Another Name	-
	Panel Size	6.5 inch	Designed For
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-30 ~ 80 °C
Maximum Ratings :	Vibration Level	2.0G (19.6 m/s²)	RoHS
Features :

HITACHI TX17D01VM2CPB Optical Details

Basic Information :	Luminance	800 cd/m² (Typ.)	Contrast Ratio	600 : 1 (Typ.) (Transmissive)
	Good View at	6 o'clock	Response Speed	30 (Typ.)(Tr+Td) (ms)
	Viewing Angle	80/80/60/80 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.300; Wy:0.310	Support Color	262K (6-bit)
Color Performance :	Color Temperature	7525K	White Uniformity	1.43 (Max.)(9 points)
1931 Color Gamut :	NTSC Ratio	45%	sRGB	62% coverage
	Adobe RGB	47% coverage	DCI-P3	46% coverage
	Rec.2020	33% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility	Sunlight Readable	Transmissivity	-

HITACHI TX17D01VM2CPB Mechanical Details

Pixel Features :	Number of Pixel	640(RGB)×480 [VGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.069×0.207 mm	Pixel Pitch(W×H)	0.207×0.207 mm [122PPI]
Physical Size :	Active Viewing	132.48(W)×99.36(H) mm	Overall Dim.	153(W)×118(H) mm
Physical Size :	Bezel Opening	135.9(W)×102.8(H) mm	Overall Depth	10.2 (Typ.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	4:3	Shape Style
Touchscreen :	TP Controller	Without controller	Control Signal	-
Touchscreen :	Touch Points	-	TP Technology	4-wire Resistive Touch, F/G
Fixation :	Side mounting holes (4-M2)
Other Detail :	Mass	240g (Typ.)	Surface	Antiglare

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
