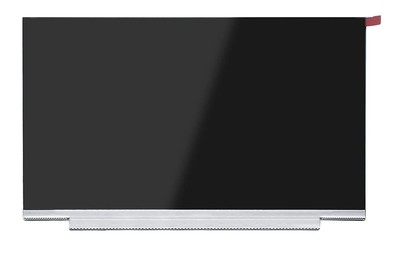

AUO B173HAN03.0 Application Details
| Basic Information : | Brand | | Model | B173HAN03.0 |
| Type | LCM a-Si TFT-LCD | Used For | |
| Screen Size | 17.3" | Alias | AUO309D |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | | Vibration | 1.5G (14.7 m/s²) |
AUO B173HAN03.0 Mechanical Details
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.0663×0.1989 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1989×0.1989 (H×V) [127PPI] |
| Mechanical Size : | Active Area(mm) | 381.888(H) × 214.812(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 398.1(H) × 250.5(V) | Depth(mm) | 4.0 (Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Flat (PCBA Flat, T3.4~4.0mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Mounting : | Face mounting holes (8 pcs) on up, down slugs |
| Other Spec : | Weight | 550g (Max.) | Treatment | Antiglare, Hard coating (3H) |
AUO B173HAN03.0 Optical Details
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry | Response(ms) | 9 (Typ.)(Tr+Td) |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.60 (Max.)(5/13 points) |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 93% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 74% coverage |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO B173HAN03.0 Electronics Details
| Frame Rate : | 144Hz |
| Reverse Scan : | No |
| Power Consumption : | 8.8W (Max.) |
AUO B173HAN03.0 Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 800mA (Max.) |
| Consumption | 2.4W (Max.) |
| Signal Type : | eDP (4 Lanes) | Signal Voltage | - |
| Interface Features : | Position |  | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20455-040E-12R | 1 pcs | 40 pins | 0.5 mm |
AUO B173HAN03.0 Backlight Details
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
| Replacement | - | Quantity | - | Life Time | 15K(Min.) (Hours) |
| Interface Features : | Position | - | Type | Included in panel signal interface |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 8.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | - |
| Consumption | 6.4W (Max.) |
