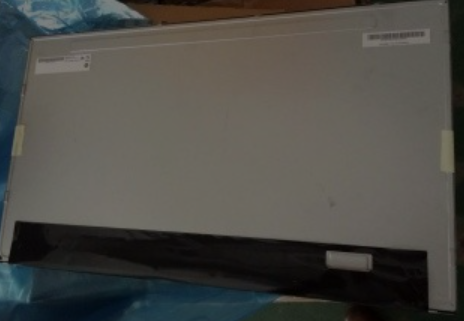

AUO G238HAN01.0 Summary
AU Optronics Corp. (hereafter called AUO) G238HAN01.0 is a 23.8 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²).
AUO G238HAN01.0 Optical Details
| Basic Detail : | Luminance 250 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 14 (Typ.)(G to G) ms Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Operating Mode AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (6-bit + Hi-FRC) Color Temperature 6485K White Variation 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio 75% sRGB 97% coverage Adobe RGB 75% coverage DCI-P3 77% coverage Rec.2020 56% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G238HAN01.0 Mechanical Details
| Pixel Features : | Number of Pixel 1920(RGB)×1080, FHD Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.0915×0.2745 mm Pixel Pitch(W×H) 0.2745×0.2745 mm [92PPI] |
| Physical Size : | Active Viewing 527.04(W)×296.46(H) mm Overall Dim. 543(W)×317.4(H) mm Bezel Opening 530.2(W)×299.6(H) mm Overall Depth 8.4/11.65 (Typ./.Max.) mm |
| Outline Features : | Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 16:9 Shape Style |
| Fixation : | Side mounting holes (4-M3) on left, right bezel |
| Other Detail : | Mass 2.28±0.08Kgs Surface Antiglare, Hard coating (3H) |
AUO G238HAN01.0 Lightting Details
| Lamp Features : | Lamp Type WLED Amount 17S4P Position Edge light type (Bottom side) Exchange - Lamp Shape 4 strings Lamp Life 30K(Min.) (Hours) |
| Lamp Electrical : | Input Voltage 54.4±6.8V Input Current 70/77mA (Typ./Max.) Consumption 15.2/17.1W (Typ./.Max.) |
| Interface Features : | Position Type Connector |
| Interface Detail : | Brand Model Pitch Pins Amount Pin Assignment E&T 1.0 mm 6 pins 1 pcs BLE-6PINS-CCAACC |
| Backlight Driver : | No |
