Home > AUO TFT LCD >

G185HAN01.0 18.5 AUO Life ≥ 50K hours，With LED Driver，Upside I/F，Matte

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

G185HAN01.0 18.5 AUO Life ≥ 50K hours，With LED Driver，Upside I/F，Matte

Brand Name : AUO

Model Number : G185HAN01.0

Certification : ISO9002

Place of Origin : CHINA

MOQ : 1PCS

Price : USD70

Payment Terms : T/T, Western Union, PAYPAL, ESCROW

Supply Ability : 3000PCS/MONTH

Delivery Time : 1-3 days

Packaging Details : 14 pcs / box 16.5 Kgs 430×370×350 mm (L×W×H

SIZE : 18.5

PIXEL : 1920(RGB)×1080, FHD, 119PPI

BRIGHTNESS : 350 cd/m² (Typ.)

SIGNALTYPE : LVDS (2 ch, 8-bit) , 30 pins Connector

Contact Now

AUO G185HAN01.0 Mechanical Details

Pixel Features :
Pixel Format
1920(RGB)×1080, FHD
Dot Pitch
0.071×0.213 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.213×0.213 mm (H×V) [119PPI]
Mechanical Size :
Display Area
408.96×230.04 mm (H×V)
Bezel Area
410.96×232.04 mm (H×V)
Outline Dim.
430.4×254.6 mm (H×V)
Outline Depth
12.0±0.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Holes & Brackets :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
1.20Kgs (Typ.)
Surface
Antiglare, Hard coating (3H)

AUO G185HAN01.0 Optical Details

Basic Information :
Brightness
350 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
AHVA, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
10/10 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.299; Wy:0.315
Color Numbers
16.7M (8-bit)
Color Temperature
7502K
Uniformity
1.18/1.25 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
73%
sRGB
99% coverage
Adobe RGB
76% coverage
DCI-P3
76% coverage
Rec.2020
55% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G185HAN01.0 Application Features

Basic Information : Brand Model Type Model Alias
G185HAN01.0 a-Si TFT-LCD , LCM -
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
-20 ~ 70 °C -20 ~ 70 °C

AUO G185HAN01.0 Electronics Features

Power Consumption : 16.5W (Typ.)
Frame Rate : 60Hz
Reverse Scan : No

AUO G185HAN01.0 Interface Features

Signal Electrical : Current Input Voltage Input Consumption
0.8/1.0A (Typ./Max.) 5.0V (Typ.) 4.0/5.5W (Typ./Max.)
Interface Features : Position Type Interface
Connector LVDS (2 ch, 8-bit)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
JAE FI-XB30SSRLA-HF16 1 pcs 1.0 mm 30 pins LVDS-30P2C8B-160A

AUO G185HAN01.0 Backlight Features

Backlight Features: Type Position Shape Amount Life(Hours) Replacement
WLED Edge light type 7 strings 9S7P 50K(Min.) No
WLED Electrical : Current Input Voltage Input Consumption
55mA (Typ.) 28.8/32.4V (Typ./Max.) 12.5W (Max.)
Interface Features : Position Type WLED Driver
- Connector With LED Driver
Interface Detail Brand Model Amount Pin Pitch Pins Pin Assignment
E&T 3808K-F05N-12R 1 pcs 1.25 mm 5 pins
Driver Electrical : Current Input Voltage Input Consumption
1.04A (Typ.) 12.0±1.2V 12.5/13.6W (Typ./Max.)

G185HAN01.0 18.5 AUO Life ≥ 50K hours，With LED Driver，Upside I/F，Matte


Product Tags:

50% NTSC TFT LCD Panel



AUO LCD Display WLED LVDS


China G185HAN01.0 18.5 AUO Life ≥ 50K hours，With LED Driver，Upside I/F，Matte wholesale

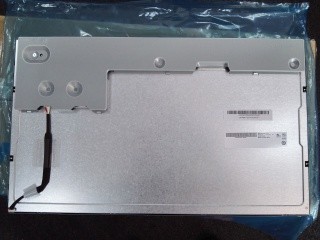

G185HAN01.0 18.5 AUO Life ≥ 50K hours，With LED Driver，Upside I/F，Matte Images
