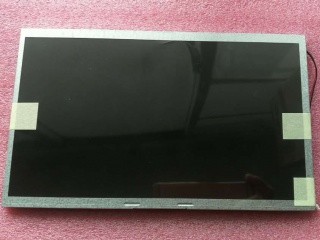

10.1 Inch C101EAN01.0 Automotive TFT Displays 3G Vibration Hight Brightness Panel

Brand Name : AUO

Model Number : C101EAN01.0

Certification : ISO9001

MOQ : 1PCS

Payment Terms : T/T, Western Union, PAYPAL, ESCROW

Supply Ability : 500PCS/MONTH

Delivery Time : 1-3 days

Packaging Details : With Original Package

SIZE : 10.1 Inch

RESOLUTION : 1280(RGB)×720 (WXGA) 145PPI

BRIGHTNESS : 700 cd/m² (Typ.)

TEMPERATURE : Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²)

Signal Interface : LVDS (1 ch, 8-bit) , 40 pins FPC

Lamp Type : 8S3P WLED , 10K hours , No Driver

Contact Now

10.1 Inch C101EAN01.0 Automotive TFT Displays 3G Vibration Hight Brightness Panel

As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.

Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.

2.AUO C101EAN01.0 Mechanical Features:

Panel Size :	10.1 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	1280(RGB)×720, WXGA	RGB Vertical Stripe	0.05825×0.17475 mm	0.17475×0.17475 mm [145PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	223.68×125.82 mm	226.78×132.22 mm	238.6×148 mm	7.5/10.3 (Typ./Max.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9 (W : H)	Landscape type
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	370±37g	Antiglare

3.AUO C101EAN01.0 Optical Features:

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	700 cd/m² (Typ.)	AHVA, Normally Black, Transmissive	1000:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	80/80/80/80 (Typ.)(CR≥10)	Symmetry	20/20 (Max.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6914K	16.7M (8-bit)	X:0.305; Y:0.330
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	71%	98%	74%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	74%	53%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.25 (Max.)(9 points)
Performance :	3D Type	Outdoor Visibility	Reflectance
Performance :	-	Sunlight Readable	-

4.AUO C101EAN01.0 Backlight Features:

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type	3 strings	8S3P	10K(Min.)	-
WLED Electrical :	Current Input		Voltage Input			Consumption
WLED Electrical :	80/85mA (Typ./Max.)		24.0/27.2V (Typ./Max.)
Interface Features :	Position	Type	WLED Driver
Interface Features :	-	Connector	No
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail	JST	GHR-05V-S	1 pcs	1.25 mm	5 pins

5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
