Mitsubishi AA084SB11 Application Features
| Basic Information : | Brand | Model 1 Compatible | Type | Model Alias |
| | AA084SB11 | a-Si TFT-LCD , LCM | T-55466D084J-LW-A-ACN |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| | -30 ~ 80 °C | -30 ~ 80 °C |
Mitsubishi AA084SB11 Mechanical Features
| Panel Size : | 8.4 inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.071×0.213 mm | 0.213×0.213 mm [119PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 170.4×127.8 mm | 174.9×132.2 mm | 199.5×149 mm | 11.5 (Typ.) mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | |
| Fixation : | Face mounting holes (4-Φ3.4), Side mounting holes (4-M2) |
| Other Features : | Panel Cover | Weight | Surface |
| - | 365g (Typ.) | Antiglare, Hard coating (3H) |
Mitsubishi AA084SB11 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
| 1200 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 80/80/80/60 (Typ.)(CR≥10) | 6 o'clock | 4/12 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K/16.7M (6-bit / 8-bit) | X:0.313; Y:0.329 |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 39% | 54% | 41% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 41% | 29% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Luminance Variation : | 1.30 (Max.)(5 points) |
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable |
Mitsubishi AA084SB11 Electronics Features
| Power Consumption : | 6.9W (Typ.) |
| Frame Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
Mitsubishi AA084SB11 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption |
| 260/420mA (Typ./Max.) | 3.3V (Typ.) | - |
| Interface Features : | Position | Type | Interface |
| - | Connector | LVDS (1 ch, 6/8-bit) |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-SEB20P-HFE | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-010H |
Mitsubishi AA084SB11 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
| WLED | Edge light type (Bottom side) | 2 strings | 2 strings | 100K(Typ.) | Replaceable |
| WLED Electrical : | Current Input | Voltage Input | Consumption |
| 100/110mA (Typ./Max.) | 30/38.1V (Typ./Max.) | 6.0W (Typ.) |
| Interface Features : | Position | Type | WLED Driver |
| - | Connector | No |
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | SM06B-SHLS-TF(LF)(SN) | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-NNCAAC |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm, outline size of 199.5(W)×149(H)×12(D) mm, viewing area size of 174.9(W)×132.2(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 365g (Typ.). As a TN, Normally White, Transmissive LCM product, AA084SB11 can provides 1200 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 100K hours, external backlight driver is additionally needed. AA084SB11 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
Product Tags:
|
|

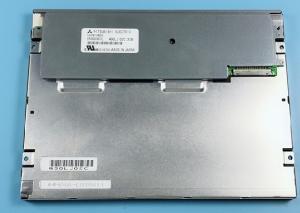

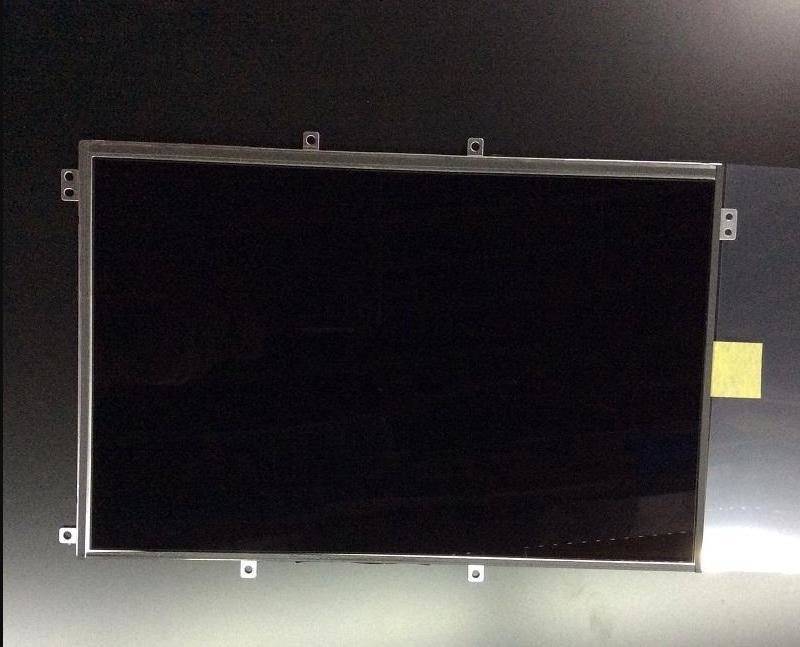

AA084SB11 Mitsubishi 8.4INCH 800×600 RGB 1200CD/M2 WLED INDUSTRIAL LCD DISPLAY Images
|
