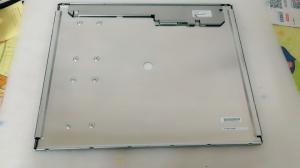

AA190EA01 Mitsubishi 19INCH 1280×1024 RGB 1500CD/M2 WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Name: AA190EA01 Mitsubishi 19INCH 12801024 RGB 1500CDM2 WLED LVDS Storage Temp 30 80 C INDUSTRIAL LCD DISPLAY
Brand: Mitsubishi
Price: 200 USD

China AA190EA01 Mitsubishi 19INCH 1280×1024 RGB 1500CD/M2 WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY wholesale

Brand Name : Mitsubishi

Model Number : AA190EA01

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Price : USD200

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW

Supply Ability : 200PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : AA190EA01

BRAND : Mitsubishi

SIZE : 19.0INCH

RESOLUTION : 1280X1024RGB

BRIGHTNESS : 1500 cd/m² (Typ.)

TEMPERATURE RANGE : Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

Lamp Type : WLED

Signal Interface : LVDS

Contact Now

Mitsubishi AA190EA01 Application Details

Basic Detail :

Manufacturer

Model Name

AA190EA01

1 Compatible

Panel Type

a-Si TFT-LCD , LCM

Another Name

T-55699D190J-LW-A-AAN

Panel Size

19.0 inch

Designed For

Maximum Ratings :

OP Temperature

-20 ~ 70 °C

ST Temperature

-30 ~ 80 °C

RoHS

Vibration Level

1.0G (9.8 m/s²)

Mitsubishi AA190EA01 Optical Details

Basic Information :

Luminance

1500 cd/m² (Typ.)

Contrast Ratio

800:1 (Typ.) (Transmissive)

Good View at

Response Speed

4/12 (Typ.)(Tr/Td) ms

Viewing Angle

80/80/80/80 (Typ.)(CR≥10)

Operating Mode

TN, Normally White, Transmissive

Color Performance :

Chromaticity

Wx:0.313; Wy:0.329

Support Color

262K/16.7M (6-bit / 6-bit + Hi-FRC)

Color Temperature

6485K

White Variation

1.30 (Max.)(5 Points)

1931 Color Gamlt :

NTSC Ratio

52%

sRGB

71% coverage

Adobe RGB

54% coverage

DCI-P3

54% coverage

Rec.2020

39% coverage

Remarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Dispaly Performance :

Outdoor Visibility

Sunlight Readable

Transmissivity

Mitsubishi AA190EA01 Mechanical Details

Pixel Features :

Number of Pixel

1280(RGB)×1024, SXGA

Arrangement

RGB Vertical Stripe

Dot Pitch(W×H)

0.098×0.294 mm

Pixel Pitch(W×H)

0.294×0.294 mm [86PPI]

Physical Size :

Active Viewing

376.32(W)×301.056(H) mm

Overall Dim.

404.2(W)×330(H) mm

Bezel Opening

379.9(W)×304.7(H) mm

Overall Depth

14.3/15.4 (Typ./Max.) mm

Outline Features :

Form Shape

Flat Rectangle

Orientation

Landscape type

Aspect Ratio(W:H)

5:4

Shape Style

Mitsubishi AA190EA01 Electronics Details

Refresh Rate :

60Hz

Reverse Scan :

Yes (180°)

Total Consumption :

33.1W (Typ.)

Mitsubishi AA190EA01 Interface Details

Signal Electrical :

Input Current

0.39/0.90A (Typ./Max.)

Input Voltage

5.0V (Typ.)

Consumption

Signal Interface

LVDS (2 ch, 6/8-bit)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

JAE

FI-X30SSLA-HF

1.0 mm

30 pins

1 pcs

LVDS-30P2C8B-160L

Mitsubishi AA190EA01 Lightting Details

Lamp Features :

Lamp Type

WLED

Amount

4 strings × 2CN

Position

Edge light type (Top and Bottom)

Exchange

Lamp Shape

4 strings × 2CN

Lamp Life

100K(Typ.) (Hours)

Lamp Electrical :

Input Voltage

30/36.3V (Typ./Max.)

Input Current

130/140mA (Typ./Max.)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

JST

SM10B-SHLS-TF(LF)(SN)

1.0 mm

10 pins

2 pcs

BLE-10PINS-NNCAACCAAC

Backlight Driver :

AA190EA01 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 376.32(W)×301.056(H) mm, outline size of 404.2(W)×330(H)×15.4(D) mm, viewing area size of 379.9(W)×304.7(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.87Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, AA190EA01 can provides 1500 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 52% (NTSC). This product adopted 4 strings × 2CN WLED as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 100K hours, external backlight driver is additionally needed. AA190EA01 utilizes LVDS (2 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
