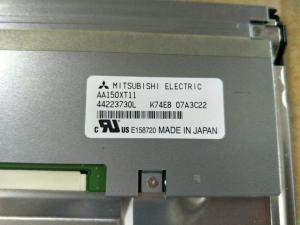

Mitsubishi AA150XT11 Application Details
| Basic Information : | Brand | | Model | AA150XT11 1 Compatible |
| Type | LCM a-Si TFT-LCD | Used For | |
| Screen Size | 15.0" | Alias | T-55534D150J-LW-A-ABN |
| Environment : | Storage Temp. | -20 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | | Vibration | 1.0G (9.8 m/s²) |
Mitsubishi AA150XT11 Mechanical Details
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.099×0.297 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 (H×V) [85PPI] |
| Mechanical Size : | Active Area(mm) | 304.128(H) × 228.096(V) | Bezel Area(mm) | 308.1(H) × 232.1(V) |
| Outline Dim.(mm) | 326(H) × 255(V) | Depth(mm) | 12.6/17.1 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M3) on left, right bezel |
| Other Spec : | Weight | 1.29Kgs (Typ.) | Treatment | Antiglare, Hard coating (3H) |
Mitsubishi AA150XT11 Optical Details
| Basic Information : | Luminance(cd/m²) | 1500 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock | Response(ms) | 6/19 (Typ.)(Tr/Td) |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.30 (Max.)(5 points) |
| 1931 Color Gamut : | NTSC Ratio | 50% | sRGB | 68% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 52% coverage |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity |
Mitsubishi AA150XT11 Electronics Details
| Frame Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 20.6W (Typ.) |
Mitsubishi AA150XT11 Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 410/700mA (Typ./Max.) |
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF14H-20P-1.25H(56) | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C8B-010H |
Mitsubishi AA150XT11 Backlight Details
| Backlight Features: | Shape | 4 strings × 2CN | Type | WLED | Position | Edge light type (Top and Bottom) |
| Replacement | Replaceable | Quantity | 7S4P×2CN | Life Time | 100K(Typ.) (Hours) |
| Lamp Electrical : | Voltage Supply | 24.0/30.5V (Typ./Max.) | Current Supply | 100/110mA (Typ./Max.) |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | SM10B-SHLS-TF(LF)(SN) | 2 pcs | 10 pins | 1.0 mm | BLE-10PINS-NNCAACCAAC |
| Backlight Driver : | No |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326(W)×255(H)×17.1(D) mm, viewing area size of 308.1(W)×232.1(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.29Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, AA150XT11 can provides 1500 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 6/19 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S4P×2CN WLED as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 100K hours, external backlight driver is additionally needed. AA150XT11 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).
