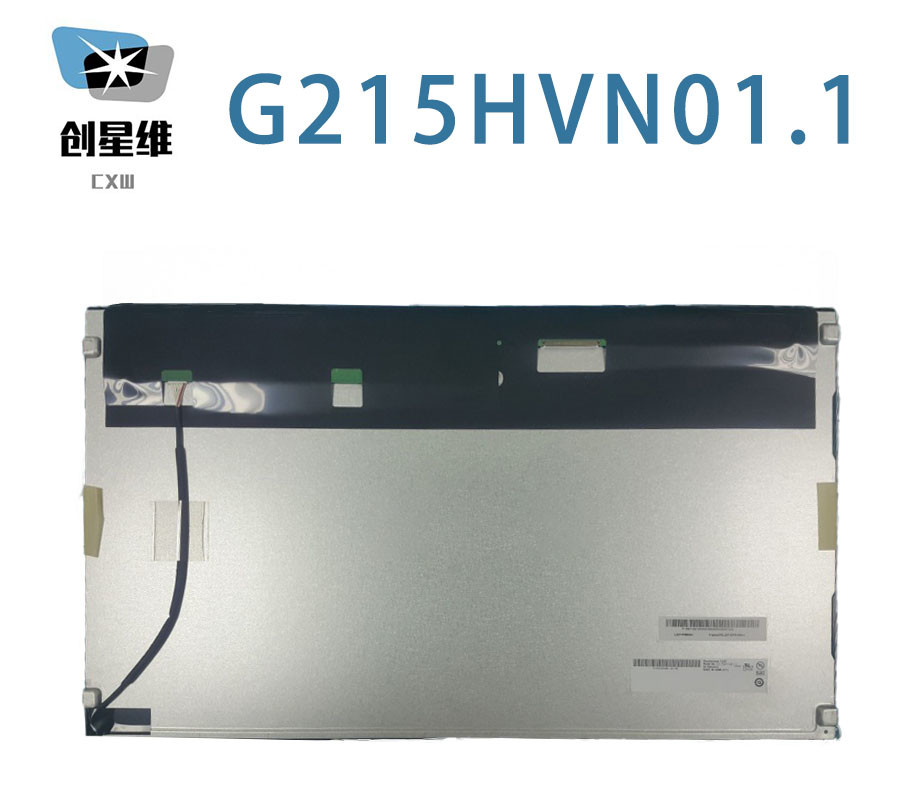

G215HVN01.1 AUO 21.5INCH 1920(RGB)×1080 250 cd/m² LVDS TFT-LCD Storage Temperature: -20 ~ 60 °C INDUSTRIAL LCD PANEL

Brand Name : AUO

Model Number : G215HVN01.1

Certification : ISO9001

Place of Origin : CHINA(S03)

MOQ : 1PCS

Price : 120USD

Payment Terms : T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW

Supply Ability : 600PCS

Delivery Time : 2-3 DAYS

Packaging Details : 9pcs / box 570×275×395 mm 21.5 Kgs

MODEL NUMBER : G215HVN01.1

BRAND : AUO

RESOLUTION : 1920X1080RGB

SIZE : 21.5INCH

CONNECTOR : LVDS

BRIGHTNESS : 250CD/M2

TEMPERATURE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

Basic Detail : Manufacturer Model Name G215HVN01.101
Panel Type a-Si TFT-LCD , LCM Another Name 97.21G01.101
Panel Size 21.5 inch Designed For
Maximum Ratings : OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C
Vibration Level 1.5G (14.7 m/s²) RoHS

AUO G215HVN01.101 Optical Details

Basic Information : Luminance 250 cd/m² (Typ.) Contrast Ratio 5000 : 1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 20/5 (Typ.)(Tr/Td) (ms)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Operating Mode AMVA3, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (8-bit)
Color Temperature 6485K White Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 72% sRGB 92% coverage
Adobe RGB 71% coverage DCI-P3 74% coverage
Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G215HVN01.101 Mechanical Details

Pixel Features : Number of Pixel 1920(RGB)×1080 [FHD] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.08275×0.24825 mm Pixel Pitch(W×H) 0.24825×0.24825 mm [102PPI]
Physical Size : Active Viewing 476.64(W)×268.11(H) mm Overall Dim. 495.6(W)×292.2(H) mm
Bezel Opening 479.84(W)×271.31(H) mm Overall Depth 11.68±0.5 mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 16:9 Shape Style
Fixation : Side mounting holes (4-M3) on left, right bezel
Other Detail : Mass 1.95Kgs (Max.) Surface

Antiglare, Hard coating (3H

AUO G215HVN01.101 Electronics Details

Refresh Rate : 60Hz
Reverse Scan : No
Power Consumption : 18.14W (Typ.)

AUO G215HVN01.101 Lightting Details

Lamp Features: Lamp Shape 5 strings Lamp Type WLED Position Edge light type (Bottom side)
Exchange No Amount 14S5P Life 30K(Min.) (Hours)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
E&T 3806K-F08N-03L 1 pcs 1.25 mm 8 pins
Backlight Driver : With LED Driver
Driver Electrical : Input Current 1.22A (Typ.) Input Voltage 12.0±1.2V
Consumption 14.64±1.46W
