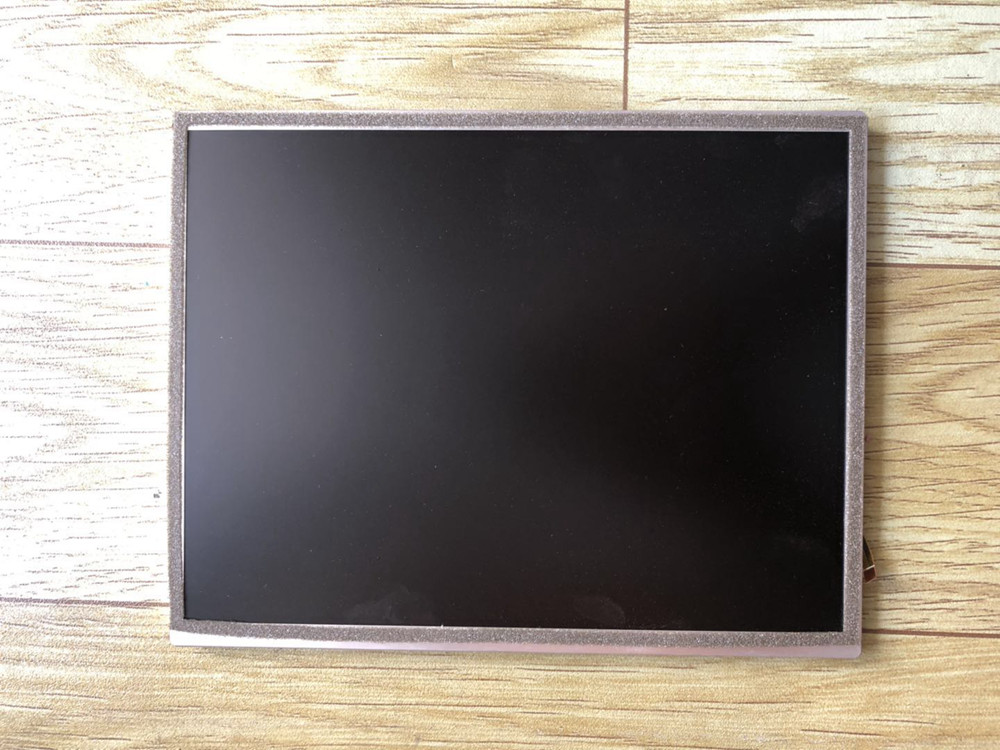

G104X1-L03 Innolux 10.4" 1024x768 TFT LCD Panel 350cd/m2 88/88/88/88 (Typ.)(CR≥10)

Name: G104X1L03 Innolux 104quot 1024x768 TFT LCD Panel 350cdm2 88888888 TypCR10
Brand: Innolux
Price: 35 USD

China G104X1-L03 Innolux 10.4" 1024x768 TFT LCD Panel 350cd/m2 88/88/88/88 (Typ.)(CR≥10) wholesale

Brand Name : Innolux

Model Number : G104X1-L03

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Price : 35

Payment Terms : T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW

Supply Ability : 500

Delivery Time : 1 DAY

Packaging Details : STANDARD PACKING

Screen Size : 10.4 inch

Pixel Number : 1024(RGB)×768 (XGA)

Max. Ratings : Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 70 °C

Luminance : 350 cd/m² (Typ.)

VIEWING ANGLEG : 88/88/88/88 (Typ.)(CR≥10)

MODEL NUMBER : G104X1-L03

Signal Interface : LVDS

Lamp Type : WLED

Contact Now

Innolux G104X1-L03 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		G104X1-L03	a-Si TFT-LCD , LCM	-
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		-20 ~ 70 °C	-20 ~ 70 °C

Innolux G104X1-L03 Mechanical Features

Screen Size :	10.4"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1024(RGB)×768, XGA	RGB Vertical Stripe	0.0685×0.2055 mm	0.2055×0.2055 mm [123PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	210.4×157.8 mm	215.4×161.8 mm	238.6×175.8 mm	6.0/7.97 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3	Landscape type
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	280g (Typ.)

Innolux G104X1-L03 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	350 cd/m² (Typ.)	Super MVA, Normally Black, Transmissive	1000:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	Symmetry	88/88/88/88 (Typ.)(CR≥10)	14/11 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6485K	262K/16.2M (6-bit / 6-bit + FRC)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	53%	73%	55%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	55%	39%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.40 (Max.)(5 points)

Innolux G104X1-L03 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	30K(Min.)	-	-	-
WLED Electrical :	Input Voltage		Input Current			Power Consumption
WLED Electrical :	26V (Typ.)
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	With LED Driver			Connector		-
Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail	ACES	91208-01001	1 pcs	10 pins	1.0 mm
WLED Driver Electrical :	Input Voltage		Input Current			Power Consumption
WLED Driver Electrical :	12.0±5.0V		0.3/0.35A (Typ./Max.)			3.1W (Typ.)

Innolux G104X1-L03 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3V (Typ.)		570±50mA			1.9W (Typ.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	LVDS (1 ch, 6/8-bit)			Connector		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	JAE	FI-XB30SRL-HF11	1 pcs	30 pins	1.0 mm	LVDS-30P1C8B-085A

Innolux G104X1-L03 Packing Features

Package Box :	Amount	Weight	Size (L×W×H)
Package Box :	18 pcs / box	8.3 Kgs	465×362×314 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
