1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.
2. TIANMA TM084SDHG01 Mechanical Features
| Panel Size : | 8.4 inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.071×0.213 mm | 0.213×0.213 mm [119PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 170.4×127.8 mm | 173.2×130.6 mm | 203×142.5 mm | 5.7±0.2 mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | - |
| Fixation : | Face mounting holes (2-Φ3.0, 2-R1.5) on left, right bezel |
| Other Features : | Panel Cover | Weight | Surface |
| - | 185.1g | Antiglare |
3. TIANMA TM084SDHG01 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
| 350cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 70/70/60/70 (Typ.)(CR≥10) | 12 o'clock | 20 (Typ.)(Tr+Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7189K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.300; Y:0.331 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 54% | 75% | 57% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 56% | 40% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA TM084SDHG01 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
| WLED | Edge light type | Array | 3S7P | 50K(Typ.) | - |
| Interface Features : | Position | Type | WLED Driver |
| - | Connector | With LED Driver |
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| E&T | 3808K-F04N-02R | 1 pcs | 1.25 mm | 4 pins | |
| Driver Electrical : | Current Input | Voltage Input | Consumption |
| 165/240mA (Typ./Max.) | 12.0V (Typ.) | 1.98W (Typ.) |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

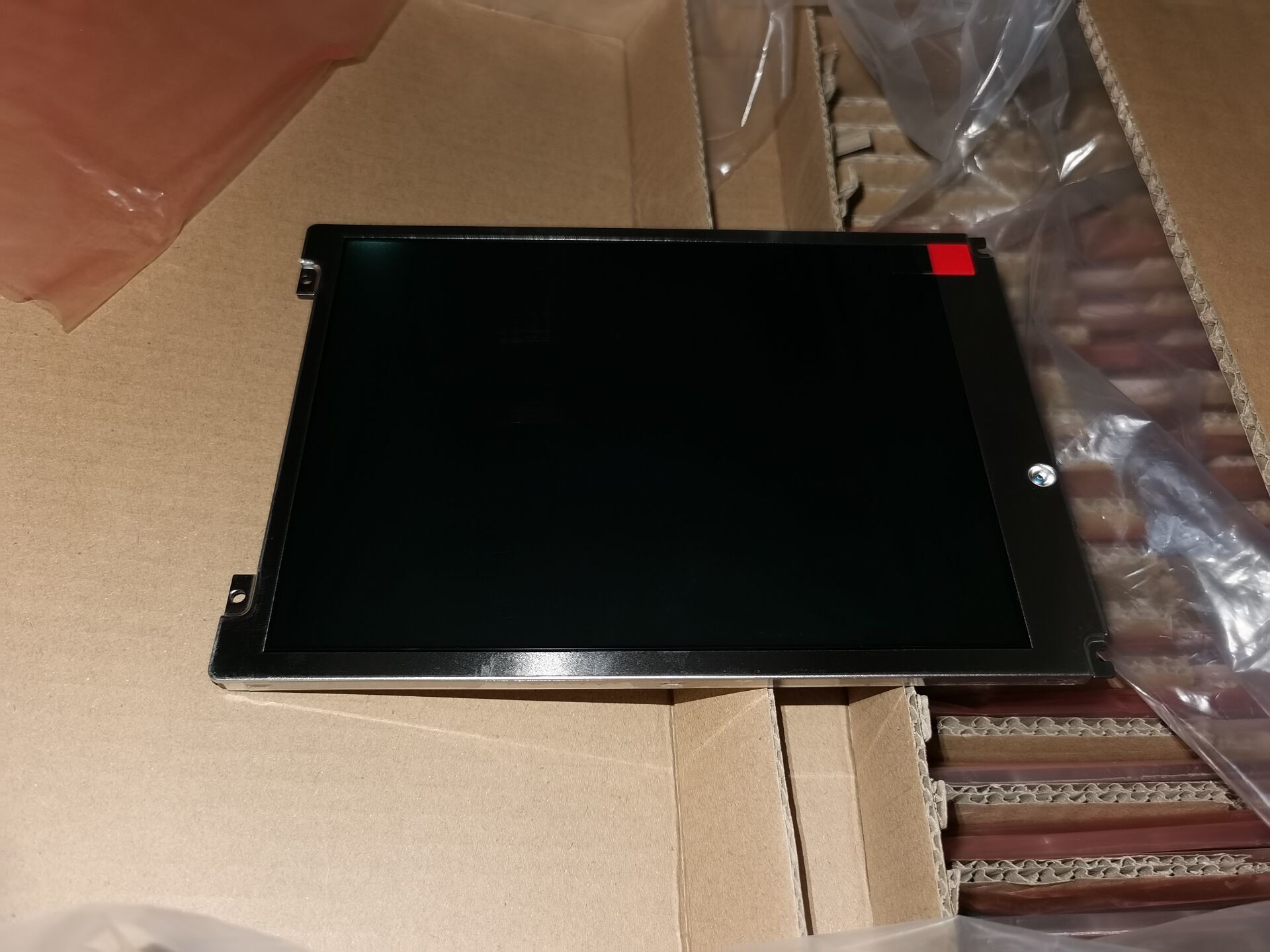

350cd/m² 8.4" 800×600 SVGA 119PPI Tianma TFT TM084SDHG01 LCD screen Images
|
