LQ104V1LG81 10.4 INCH SHARP TFT-LCD 640(RGB)×480, VGA, 76PPI PIXEL -30 ~ 80 °C Industrial LCD Panel
1. Main Information:
The LQ104V1LG81 is a 10.4 inch diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Panelook in the following: Wide Temperature, WLED Backlight, Life ≥ 50K hours, With LED Driver, U/D,L/R Reverse, Matte , Strong LCD2, Long-life LED backlight; Mechanical compatible with LQ104V1DG61/LG61. Based on its features, Panelook recommend that this model be applied to Industrial etc.
2. Sharp LQ104V1LG81 Mechanical Features
| Screen Size : | 10.4" |
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 211.2×158.4 mm | 214.6×162.4 mm | 246.5×179.3 mm | 12.5±0.5 mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | - |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
| 500g (Typ.) | - | Antiglare, Hard coating (3H) |
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel |
3. Sharp LQ104V1LG81 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
| 450 cd/m² (Typ.) | TN, Normally White, Transmissive | 800:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| 6 o'clock | 80/80/65/80 (Typ.)(CR≥10) | 35 (Typ.)(Tr+Td) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7351K | 262K (6-bit) | X:0.300; Y:0.320 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 68% | 51% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 51% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Uniformity : | 1.33 (Max.)(5 points) |
4. Sharp LQ104V1LG81 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
| WLED | Edge light type | 50K(Typ.) | - | - | - |
| Interface Features : | WLED Driver State | Physical Type | Interface Position |
| With LED Driver | Connector | - |
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM06B-SHLS-TF | 1 pcs | 6 pins | 1.0 mm | |
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption |
| 12.0±1.8V | 400/500mA (Typ./Max.) | - |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
.
Product Tags:
|
|

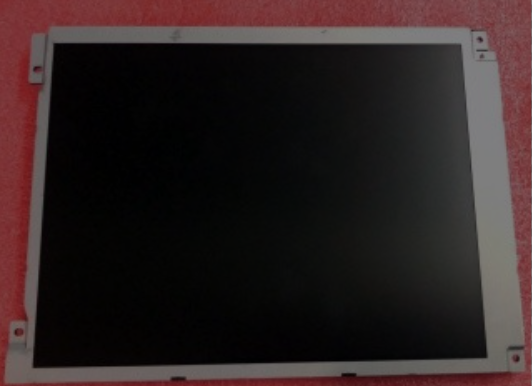

10.4" 640×480 Viewing angle 80/80/65/80 LQ104V1LG81 VGA 76PPI TFT LCD Panel Images
|
