1. Main Information:
The TM097TBHG02 is a 9.7 inch diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd.with an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are following: With Touch, WLED Backlight, Matte . Based on its features,this model be applied to Industrial etc.
2. TIANMA TM097TBHG02 Mechanical Details:
| Pixel Features : | Pixel Format | 1024(RGB)×768 [XGA] | Dot Pitch | 0.064×0.192 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.192×0.192 mm (H×V) [132PPI] |
| Mechanical Size : | Display Area | 196.608×147.456 mm (H×V) | Bezel Area | - |
| Outline Dim. | 210.2×166.2 mm (H×V) | Outline Depth | 5.35 (Typ.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | - |
| Touch Screen : | Touch Points | - | TP Signal | - |
| TP Controller | Without touch controller | Touchscreen | 4-wire Resistive Touch |
| Other Features : | Weight | 200g (Typ.) | Surface | Antiglare, Hard coating (3H) |
3. TIANMA TM097TBHG02 Optical Details:
| Basic Information : | Brightness | 280 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Viewing Angle | 70/60/70/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive |
| Viewing Direction | 3 o'clock | Response Time | 20 (Typ.)(Tr+Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.311; Wy:0.316 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6720K | White Uniformity | 1.33 (Typ.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 69% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 51% coverage |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA TM097TBHG02 Interface Details:
| Signal Systerm : | LVDS (1 ch, 6-bit) | Logic Voltage | - |
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 271mA (Typ.) |
| Consumption | 894.3mW (Typ.) |
| Interface Features : | Type | Connector | Position | - | |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20474-030E-11 | 0.4 mm | 30 pins | 1 pcs |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

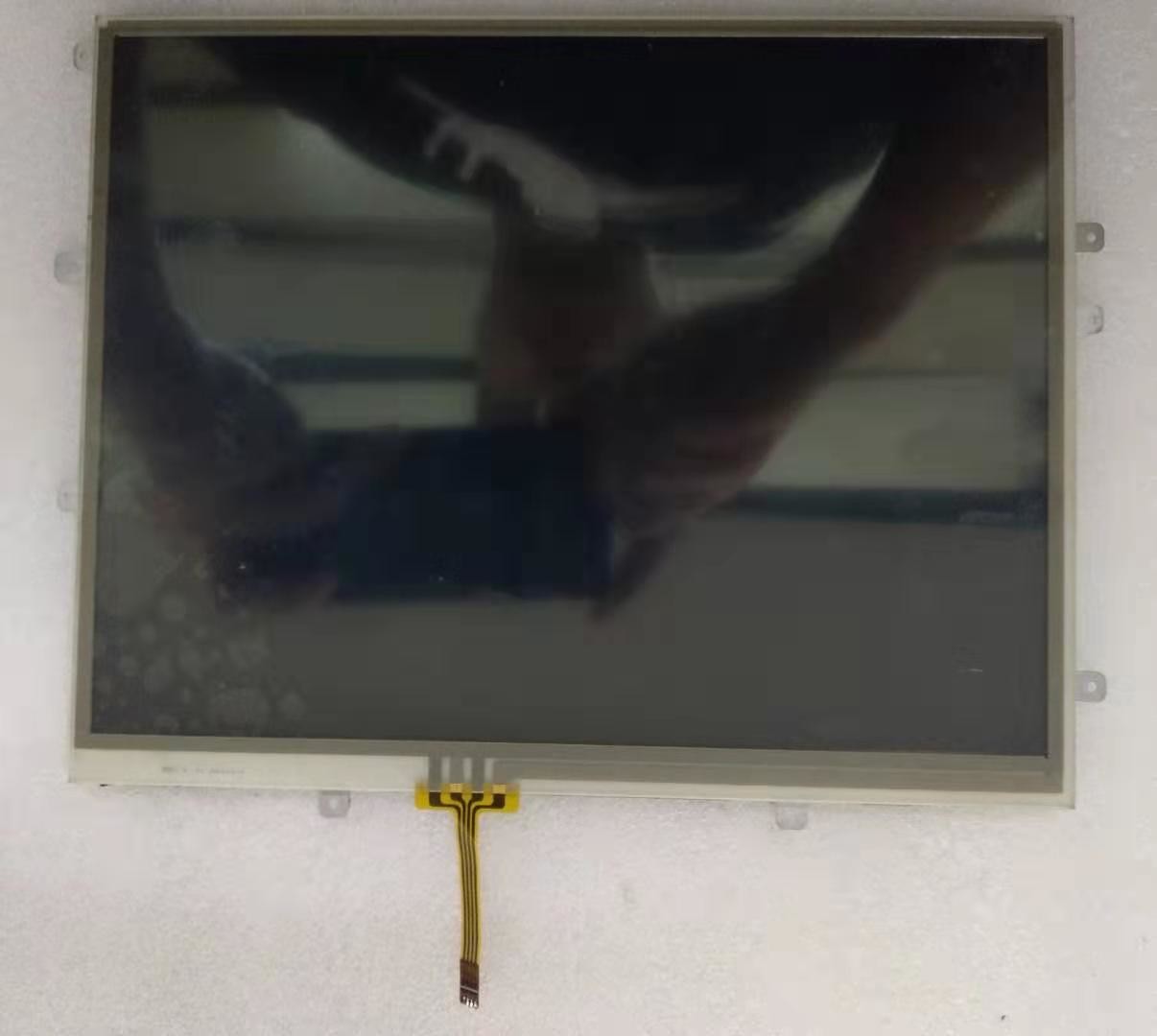

TFT LCD 9.7 Inch TM097TBHG02 4 Wire Resistive Touch Display 70/60/70/70 (Typ.)(CR≥10) Images
|
