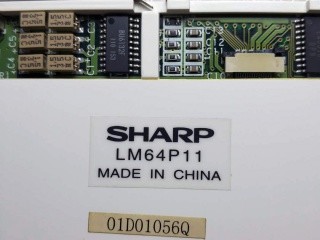

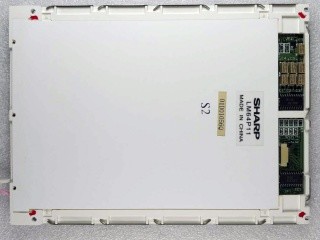

LM64P11 6.0 INCH SHARP TFT-LCD 640×480 (VGA) 133PPI PIXEL -25 ~ 60 °C Industrial LCD Panel
1. Main Information:
The LM64P11 is a 6.0 inch diagonal FSTN-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 45°C , a storage temperature range of -25 ~ 60°C . Based on its features, Panelook recommend that this model be applied to Industrial etc
2. Sharp LM64P11 Mechanical Features
| Screen Size : | 6.0" |
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640×480, VGA | Rectangle | 0.190×0.190 mm | 0.190×0.190 mm [133PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 121.58×91.18 mm | 130.6×100.2 mm | 167.7×122.8 mm | 5.3 (Typ.) mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | - |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
| 145g (Typ.) | - | - |
| Holes & Brackets : | Face mounting holes (2-Φ2.4, 2-R1.2) |
3. Sharp LM64P11 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
| 80 cd/m² (Typ.) | STN, Black/White (Negative), Transmissive | 18:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| - | 20/25/20/10 (Typ.)(CR>4) | 200/150 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| - | Monochrome | - |
4. Sharp LM64P11 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
| CCFL | Edge light type (Top side) | 10K(Min.) | 1 pcs | - | - |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption |
| 270V (Typ.) | 4.0mA (Typ.) | 1.1W (Typ.) |
| Interface Features : | CCFL Driver State | Physical Type | Interface Position |
| No | Connector | - |
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLL-3PINS-LNH |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
