LQ10D367 10.4 Inch 640×480 LCM Sharp TFT LCD Display 211.2 × 158.4 (H×V)

LQ10D367 10.4 INCH SHARP TFT-LCD 640(RGB)×480 (VGA) 76PPI PIXEL-25 ~ 70 °C Industrial LCD Panel

1. Main Information:

• LQ10D367 is a 10.4" diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -25 ~ 70°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Panelook in the following: Lamp Repaceable, U/D,L/R Reverse, Matte . Based on its features, Panelook recommend that this model be applied to Industrial etc.

• 2. Sharp LQ10D367 Mechanical Features

  Screen Size :	10.4"
  Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
  	640(RGB)×480, VGA	RGB Vertical Stripe	0.110×0.330 mm	0.330×0.330 mm [76PPI]
  Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
  	211.2×158.4 mm	216.2×163.4 mm	246.5×179.4 mm	10.5±0.5 mm
  Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
  	Flat Rectangle	4:3	Landscape type	-
  Other Spec :	Mass	Panel Cover	Surface Treatment
  	625g (Typ.)	-	Antiglare (Haze 28%), Hard coating (3H), Antireflection
  Holes & Brackets :	Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel

• 3. Sharp LQ10D367 Optical Features

  Basic Information :	Luminance	Work Mode	Contrast Ratio
  	200 cd/m² (Typ.)	TN, Normally White, Transmissive	100:1 (Min.) (Transmissive)
  	Good View at	Viewing Angle	Response Time
  	6 o'clock	70/70/40/70 (Typ.)(CR≥10)	20/40 (Typ.)(Tr/Td) (ms)
  Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
  	6485K	262K (6-bit)	X:0.313; Y:0.329
  White Uniformity :	1.45 (Max.)(5 points)

• 4. Sharp LQ10D367 Backlight Features

  Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
  	CCFL	Edge light type (Top side)	25K(Typ.)	1 pcs	Straight	Replaceable (LQ0B200)
  CCFL Electrical :	Input Voltage		Input Current			Power Consumption
  	500V (Typ.)		2.0/6.0/6.5mA (Min./Typ./Max.)			3.0W (Typ.)
  	Operating Frequency		Startup Voltage
  	20/35/60KHz (Min./Typ./Max.)		950/1400V (Max.)(Ta=+25/0℃)
  Interface Features :	CCFL Driver State			Physical Type		Interface Position
  	No			Connector		-
  Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
  	JST	BHR-03VS-1	1 pcs	3 pins	4.0 mm	BLL-3PINS-HNL

•
  5. FAQ:
  Q1: What's the quality of your LCD Panel?

  A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

  Q2: What is your return and refund policy?

  A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

  Q3 :How long is the lead time?

  A: The lead time is about 1-3 working days after receipt of payment.

  Q4: How can I get the quotation?

  A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

•

10.4 INCH Sharp TFT LCD Display

LQ10D367

640×480 Sharp TFT LCD Display

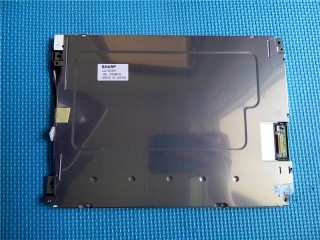

LQ10D367 10.4 Inch 640×480 LCM Sharp TFT LCD Display 211.2 × 158.4 (H×V) Images
