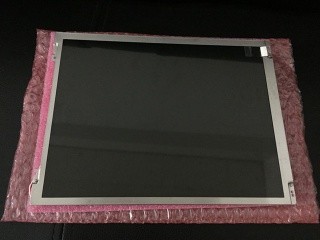

10.4 Inch 50% NTSC Medical LCD Display TM104SDH01 WLED Backlight
1. Main Information:
The TM104SDH01 is a 10.4 inch diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd.with an integral WLED backlight system, without backlight driver, without touch screen.
It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are following: WLED Backlight, Matte . Based on its features,this model be applied to Industrial, Medical Imaging etc.
2. TIANMA TM104SDH01 Mechanical Details:
| Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.088×0.264 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.264×0.264 (H×V) [96PPI] |
| Mechanical Size : | Active Area(mm) | 211.2(H) × 158.4(V) | Bezel Area(mm) | 215.0(H) × 162.0(V) |
| Outline Dim.(mm) | 236(H) × 176.9(V) | Depth(mm) | 5.6±0.3 |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Mounting : | Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel |
| Other Spec : | Weight | 288g | Treatment | Antiglare, Hard coating (3H) |
3. TIANMA TM104SDH01 Optical Details:
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock | Response(ms) | 10/15 (Typ.)(Tr/Td) |
| Color Performance : | White Coordinate | X:0.309; Y:0.334 | Display Colors | 262K (6-bit) |
| Color Temperature | 6655K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 51% | sRGB | 71% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 53% coverage |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA TM104SDH01 Backlight Details:
| Backlight Features: | Shape | Array | Type | WLED | Position | Edge light type (Top side) |
| Replacement | - | Quantity | 6S6P | Life Time | 30K(Min.) (Hours) |
| Lamp Electrical : | Voltage Supply | 18/19.2/21.6V (Min./Typ./Max.) | Current Supply | 120/180mA (Typ./Max.) |
| Consumption | 2.30/3.89W (Typ./Max.) |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHSR-02VS-1 | 1 pcs | 2 pins | 3.5 mm | BLE-2PINS-AC |
| Backlight Driver : | No |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
